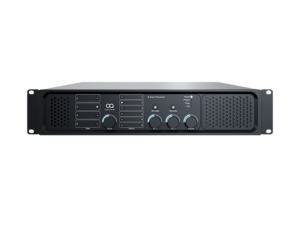

Optimal Audio Zone 4 – 4-Zone Audio controller
฿ 49,900
Installment Details
×Choose your installment plan on the payment page during checkout!
| Bank | Interest % | Period | Monthly |
|---|---|---|---|
| Bangkok Bank Cards (BBL) | 0% | Up to 10 months | ฿ 4,990 |
| KBank Cards (Kasikorn Thai) | 0% | Up to 10 months | ฿ 4,990 |
| Krungsri Cards (BAY) | 0% | Up to 10 months | ฿ 4,990 |
| Krungsri First Choice Cards (KFC) | 0% | Up to 10 months | ฿ 4,990 |
| Krung Thai Cards (KTC) | 0% | Up to 10 months | ฿ 4,990 |
| SCB Cards (Siam Commercial/CardX) | 0% | Up to 10 months | ฿ 4,990 |
| TTB Cards | 0% | Up to 10 months | ฿ 4,990 |
In stock
In stock
ProPlugin delivers your parcels through Thailand Post. All parcels are shipped through Thailand Post's EMS Service to ensure fast delivery options!
|
Delivery within Thailand |
|
|---|---|
|
Bangkok metropolitan area |
Delivery within 1 business day |
|
Chiang Mai province |
Delivery within 2 business days |
|
Remote areas |
Delivery within 3 business days |
|
All other destinations within Thailand |
Delivery within 1 business day |
*Shipping times apply if ordered before 12.00 noon (add 1 business day if ordered after 12.00 noon)
Your satisfaction is important to us. If you've changed your mind about your order, you may request a return within 15 days of receiving your order! If you wish to initiate a return, please contact our customer support team.
Please note that the product must be unopened/sealed, and some exclusions apply, for example on software. Please carefully read our full returns & refund policy.
Most of our products come with a standard 1-year warranty covering manufacturer defects and electronic malfunctions under normal usage.
If a product is under warranty, we provide free repairs at our repairs centre for music equipment in Bangkok. If the product broke within 15 days after your purchase, we'll provide you with a brand new product.
If you wish to initiate a warranty claim, please contact our customer support team.
Additionally, you read our full warranty policy.
Orders from 3000 THB are eligible for payment in up to 10 installments.
Installments are currently only supported for customers that use a Thai-issued creditcard from select Thai banks.
You can select your preferred installment option during your payment.
Product Information
Zone 4 is a zonal audio controller with DSP providing everything required in a single compact unit to become the beating heart of an efficient, high-quality multi-zoned commercial sound system.
It allows the user to independently allocate sources across four configurable zones, such as a lobby, bar or restaurant, and each zone can be configured to do precisely what is required using the intuitive WebApp. This includes EQs, speaker presets, structured time of day routines and so much more.
Zone 4 features 4 line and 2 mic inputs plus 2 HDMI inputs for TV and video sound.
It has been designed to work seamlessly with other products in the Optimal Audio range and when coupled with ZonePad and SmartAmp series provides a simple, intuitive and cost-effective audio system with superb sound quality.
Features
- Full suite of audio controls for up to 4 zones
- Fully flexible signal routing
- WebApp interface for easy system configuration and everyday control
- 2 mic, 4 stereo line and 2 HDMI inputs
- Fully programmable presets and timed events
- Very competitive pricing
| TYPE | 4 zone audio processor with DSP and loudspeaker presets |
| MIC INPUTS | 2 with 48V phantom power, +12dB to +55dB gain |
| MIC INPUT PROCESSING | Fixed hi-pass filter @160Hz; sweepable mid-band 200Hz-5kHz, +/-12dB; HF shelf @12kHz |
| LINE INPUTS | 4 stereo with +26dB gain trim. SPDIF option on input 1 |
| HDMI INPUTS | 2 |
| LINE OUTPUTS | 4 |
| ZONEPAD SOCKETS | 4 |
| PAGING INPUTS (CAT 5) | 2 |
| LAN ETHERNET100Mbps | Yes |
| ALARM OVERRIDE | Yes |
| DIMENSIONS | (W) 480mm x (H) 88mm x (D) 400mm (W) 18.90” x (H) 3.46” x (D) 15.75” |
| WEIGHT | 9.2kg (20.2lbs) |
