Key Highlights
Elegant 8-inch touchscreen for intuitive and responsive control
Durable tempered glass interface suitable for commercial environments
Centralized control across up to eight audio zones
Clean power via PoE or optional Wi-Fi deployment flexibility
Quick and clean wall installation with surface mount plate
Optimal Audio ZonePad 8 8″ Touchscreen wall controller
The ZonePad 8 is a sleek wall-mounted touchscreen controller featuring an 8-inch IPS display and tempered glass capacitive touch panel. Designed for seamless operation of multi-zone audio systems, it offers intuitive control of playback sources, volume, and microphone levels across up to eight zones from a single interface. Integration with Optimal Audio Zone controllers is automatic, and the device supports robust Power-over-Ethernet (PoE) installation or optional Wi-Fi for flexible deployment.
ZonePad 8 is an elegant wall-mounted touchscreen controller, providing users with clear and intuitive access to the controls of up to eight zones within an Optimal Audio commercial audio system. With a vibrant 8-inch IPS touch display and tempered glass capacitive touch panel, ZonePad 8 offers a sophisticated and user-friendly interface, providing users with the ability to operate complex audio systems effortlessly.
ZonePad 8 enables intuitive control of source switching, volume and microphone levels, as well as triggering advanced features like routines or message playback in up to eight zones, with advanced device configuration setting access to individual zones and permission settings over the functions available to each zone, making it ideal for dynamic commercial environments.
Its seamless integration with Optimal Audio Zone controllers, powerful quad-core processor, and secure design ensures reliable and responsive control tailored to any venue’s unique needs.
Power is delivered via POE from a compatible router or switch.
For venues where the installer cannot run cables, ZonePad 8 can be powered locally with an optional 12v power supply and connect to the network and Zone controller via WIFI.
Specifications
| Parameter | Details |
|---|---|
| Type | 8-zone touchscreen wall controller |
| Display | 8-inch IPS capacitive touchscreen, 10 multi-touch points, tempered glass, impact resistant to IK2 standard |
| Resolution | 1280 × 800, 189 DPI |
| Data Protocol | Optimal Audio proprietary over CAT 5 |
| WebApp System Connection | Ethernet via RJ45 adaptor / Wireless |
| Power | PoE (Power over Ethernet) or optional 12 V adaptor |
| Computing | Allwinner A133, Quad-Core Cortex-A53 @ 1.5 GHz, 2 GB RAM, OS: Android 14 |
| Enclosure | Satin finished ABS, UL94 V0 rated material |
| Colour | Black |

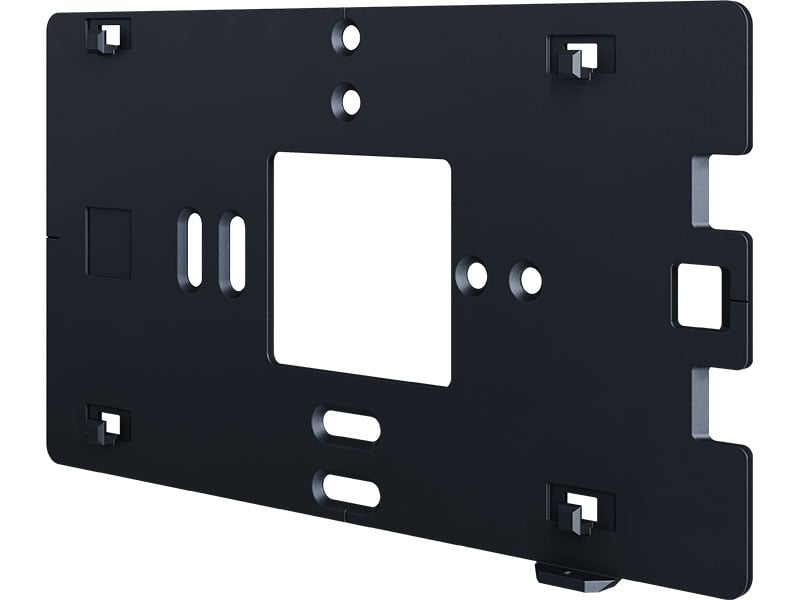

| Mounting System | Supplied with surface mount plate, compatible with single gang EU, US, and UK back boxes |
| Dimensions (W × H × D) | 146 mm × 86.2 mm × 39.3 mm 5.75″ × 3.39″ × 1.55″ |
| Weight | 0.35 kg (0.8 lbs) |
Who is it for?
Ideal for multi-zone venues: restaurants, hotels, retail, museums, offices
For spaces needing a modern, user-friendly audio control interface
Perfect when staff preference for wall-mounted control over mobile apps
Well suited to installation scenarios with cable-routing constraints, offering tidy, integrated setup
