THIS ONE’S FOR THE CREATORS
At Zoom, we’ve been designing Multi-Effects for guitar players for over 30 years. The G11 represents the culmination of our engineering and passion.

FEATURES OF THE G11
Integrated pedal board with dedicated amp modeling panel, five stomp switches and expression/volume Control
Touchscreen interface on color LCD with drag and swipe functions for easy and fast navigation
Chain up to nine effects plus an amplifier emulation
Original amp modeling combinations
Original distortion and modulation effects
70 built in IR emulations plus 130 available slots for user uploaded IR’s
Two send/return effects loop plus MIDI in/out
5-minute stereo looper
68 built-in rhythm patterns
USB audio interface for direct recording to your DAW
Remote iOS connection for using Handy Guitar Lab via Bluetooth adapter (BTA-1)
Compatible with Zoom Guitar Lab to download additional effects
TOUCHSCREEN INTERFACE
Application driven

AMPLIFIER PANEL
Tweak amp settings with durable, backlit LED controls knobs

EFFECTS SECTION
Turn on/off effects and control effects parameters

FOOTSWITCHES
Scroll and select patch memories & banks and control looper and tuner

EXPRESSION PEDAL
Adjust volume and other effect parameters

INPUTS
¼ inch guitar input plus ⅛ inch aux input

EFFECTS LOOPS INS/OUTS
2 mono or 1 stereo effects send and return for external effects pedals

OUTPUTS
Stereo ¼ inch outputs plus ¼ inch headphone output

EXTERNAL EXPRESSION PEDAL INPUT
¼ inch input for FP-02M expression pedal

MIDI
MIDI in/out for connection to external MIDI pedals

BLUETOOTH ADAPTER SLOT
Insert Blueotooth adapter to connect iOS device to utilize Handy Guitar Lab

USB-C PORT
Connect to computer for Guitar Lab software and record directly to your DAW

USB PORT
Connect a flashdrive to import IR data or update the firmware

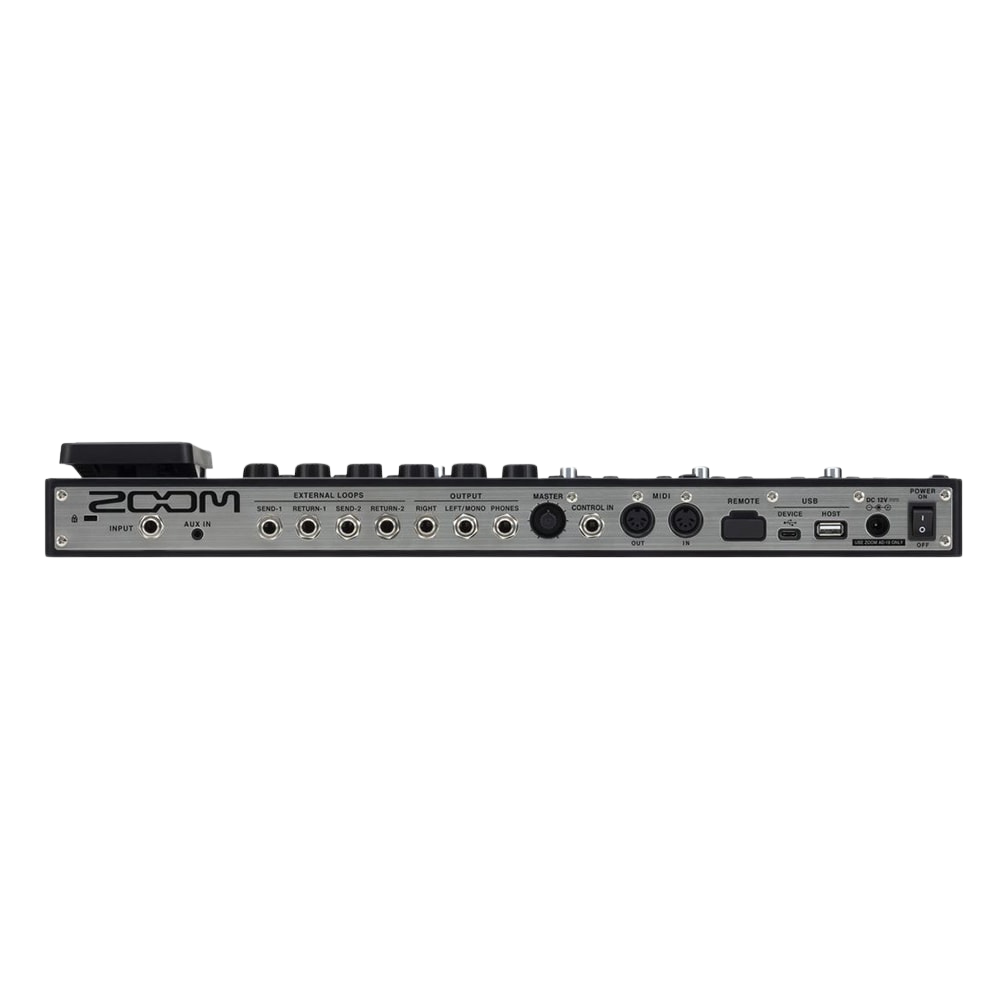

G11 top and back panels
SPECS
MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS : Amplifier + 9 effects
USER PATCHES : 240
SAMPLING FREQUENCY: 44.1 kHz
A/D CONVERSION: 24-bit 128× oversampling
D/A CONVERSION: 24-bit 128× oversampling
SIGNAL PROCESSING: 32-bit
FREQUENCY CHARACTERISTICS: 20 Hz – 20 kHz (+1 dB/−2 dB) (10kΩ load)
DISPLAYS: 5″ TFT color LCD (800×480) Dot-matrix LCDs (128×32) (6)
INPUTS
INPUT: Standard mono phone jack Rated input level: -20 dBuInput impedance (line): 500 kΩ
RETURN: Standard mono phone jacks (2) Rated input level: -20 dBuInput impedance (line): 1 MΩ
AUX IN: Stereo mini jack Rated input level: -10 dBuInput impedance (line): 10 kΩ
OUTPUTS
LEFT/RIGHT: Standard mono phone jack Maximum output level:INST/LINE +11.4 dBu/+19 dBu (when output impedance 10 kΩ or higher)
PHONES: Standard stereo phone jack Maximum output level:Line +11.4 dBu (when output impedance 10 kΩ or higher)Headphones 24 mW + 24 mW (at 32Ω load)
SEND: Standard mono phone jacks (2) Maximum output level:Line +11.4 dBu (when output impedance 10 kΩ or higher)
INPUT S/N : 123 dB
NOISE FLOOR (RESIDUAL NOISE): Left/Right : INST/LINE −99.5 dBu/−92.5 dBuSEND: -99.0 dBu
MIDI IN/OUT: 5-pin DIN jacks
CONTROL INPUT: FP02M input
USB DEVICE: Connector: USB2.0 Type-C / Supported cable: Type-C cable GuitarLab: USB1.1 Full SpeedAudio Interface: USB2.0 High Speed, 44.1 kHz/32-bit 4in 4out• Use cables for data transfer. USB bus power not supported.
USB HOST: Connector: USB2.0 Type-A / Standard: USB 2.0 High Speed • Use a USB thumb drive.
REMOTE: ZOOM BTA-1 or other dedicated wireless adapter
EXTERNAL DIMENSIONS: 253 mm (D) × 495 mm (W) × 64 mm (H)
WEIGHT: 2.8 kg
