คุณสมบัติ
- Ultra-lightweight, compact and wearable design is perfect when stealth is a priority.

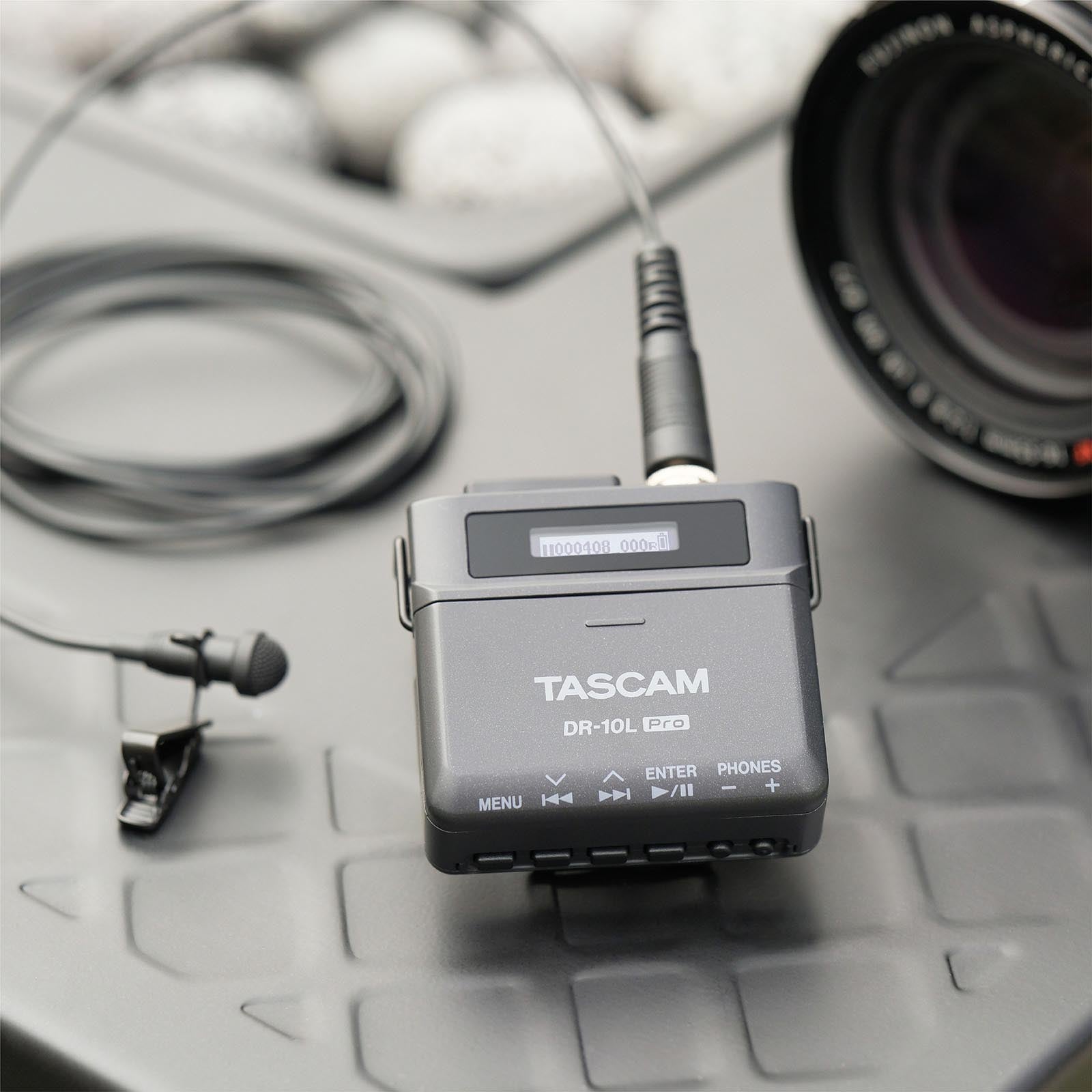

- TM-10L lavalier microphone with clothing clip and windscreen included (cable length: 160cm).

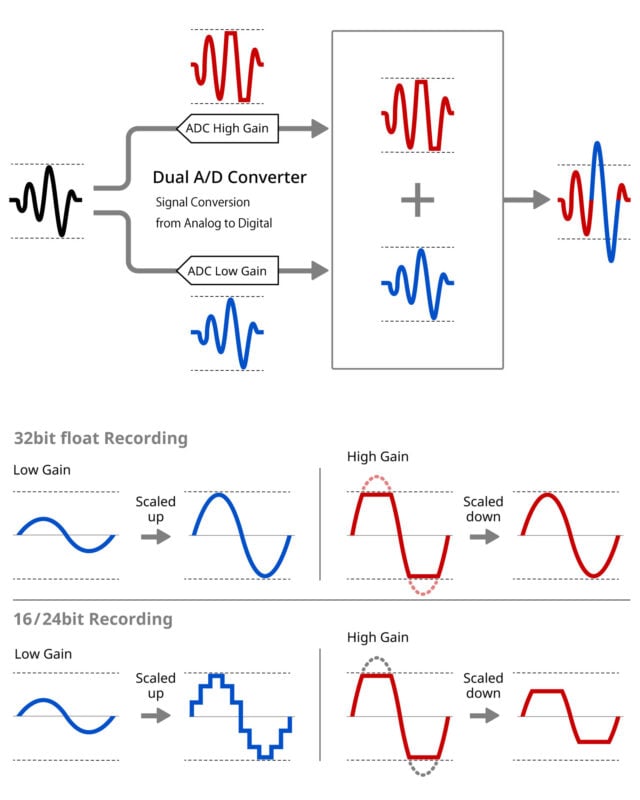

- 32-bit float recording and dual AD converter technology means you’ll never need to scrap a recording due to poor audio levels, and no need to fine-tune input levels.
- Supports recording in MP3 format
- Huge storage capacity, with support for microSDXC cards up to 512GB.
- Records at least 24.5 hours on two AAA batteries*¹ for all-day video shoots.
- Optional AK-BT1 Bluetooth® adapter (sold separately) adds wireless control and synchronization.
- Free DR-10L Pro CONNECT app for iOS, iPadOS and Android allows you to control up to 5 units simultaneously *².

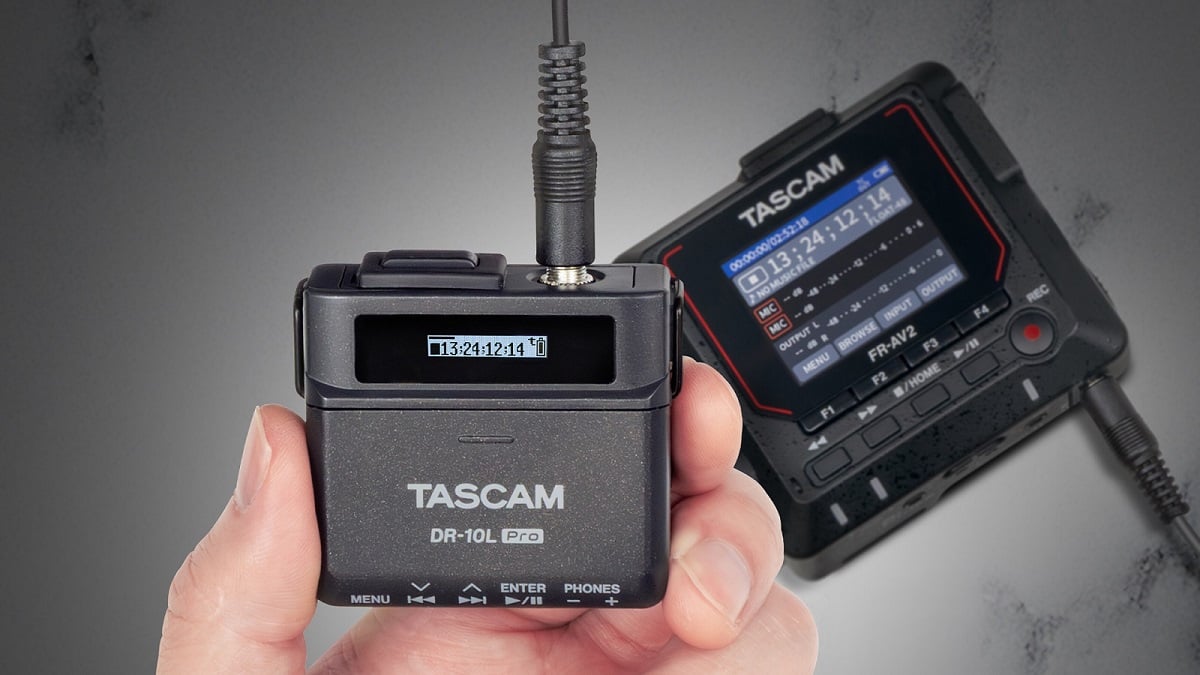

- Wireless time code synchronization supported with compatible Atomos products such as BLUE or CONNECT series.
Spec description
Recorder specifications | |
Recording media | microSD cards (64MB – 2GB), microSDHC cards (4GB – 32GB), microSDXC cards (64GB – 512GB) |
Recording / playback formats | |
WAV (BWF) | 44.1k/48kHz, 16/24-bit, 32-bit float |
MP3 | 44.1k/48kHz |
Recording | 128k/192kbps |
Playback | 32 – 320kbps |
Analog audio input ratings | |
Input | |
Connector | 3.5mm(1/8″) TRS jack with screw lock |
Maximum input level | -11dBV |
Input gain | 7.5dB – 38dB |
Input impedance | 2kΩ or higher |
Lavalier microphone (TM-10L) | |
Sensitivity | -42dBV/Pa |
Max. SPL | 115dBSPL |
Cable length | 1.6m |
Analog audio output ratings | |
Headphone output | |
Connector | 3.5mm(1/8″) stereo mini jack (Dual Mono Output) |
Maximum output | 10mW + 10mW (THD+N 0.1% or less, into 32Ω) |
Working impedance | 16ohms to 400ohms |
Control input/output ratings | |
USB port | |
หัวเชื่อมต่อ | USB Type-C |
Format | USB2.0 HIGH SPEED mass storage class |
Bluetooth® device connector | For Bluetooth® adapter (AK-BT1) only |
Plug-in power (Mic bias) | 2.3V |
Power | 2 AAA batteries (Alkaline / Ni-MH / Lithium), USB bus power |
Power consumption (battery) | 0.3W (MAX) |
Current consumption (USB bus power) | 0.1A (MAX) |
Battery (RTC) | Lithium × 1 (built in with soldering) |
Dimensions (excluding protrusions) | 53 (W) × 50.7 (H) ×21.4 (D) mm |
Weight | 65g(including battery) / 43g (without battery) |
Operating temperature | 0 – 40℃ |
Included | DR-10L Pro ×1 Belt clip ×1 USB cable (Type A – Type C) ×1 TM-10L – Lavalier microphone ×1 – Microphone clip ×1 – Windscreen ×1 Start-up Guide (including warranty) ×1 TASCAM ID registration guide ×1 iZotope RX Elements download card ×1 |
Battery operation time (continuous operation)
Batteries | Operation time | Bluetooth® | Settings |
Alkaline batteries (EVOLTA) |
About 16.5 hours | – | Format : WAV, 48kHz, 32-bit float Mic connected Headphones not connected Limiter : OFF File type : MONO |
About 16 hours | ✓ | ||
Ni-MH batteries (eneloop) |
About 11.5 hours | – | |
About 10.5 hours | ✓ | ||
Lithium-ion batteries (Energizer Ultimate Lithium) |
About 24.5 hours | – | |
About 23 hours | ✓ |
