Drums

A dual-zone snare drum with independent sounds triggered on the head, rim click, and rim shot, followed by 8”/8”/10” dual-zone toms and an 8” kick drum provides ample playing surface, suitable for all varieties of single and double kick drum pedals. The tension can be adjusted on all mesh heads, letting you set the exact level of rebound and expressiveness to your preference. Unnatural and unwanted ‘hotspots’ on the heads are eliminated with our unique patented anti-hotspot sensor design (U.S. Patent 9,424,827).

ARC Cymbals

Strata Core’s ARC cymbals are exceptionally sensitive with a beautifully lathed surface. All three cymbals – the 14” ride and two 12” crashes – are triple-zone with different sounds triggered on the bell, bow, and edge of each cymbal. They’re all 360-degree responsive, so that you can play anywhere throughout the cymbal and mount on standard acoustic arm mounts, which allows them to respond and swing naturally without restrictions. All cymbals have dual-edge sensors (patent pending) and profiles that allow incredible expressiveness without having to adjust your technique.

Hi-Hat

The 12” Active Magnetic hi-hat is a superbly playable magnetic, stand-mounted system. Like the cymbals, this triple-zone 360-degree playing surface is extremely responsive. Magnetic position sensing ensures that pedal movements are translated in high resolution, meaning the contactless system is unmatched in its accuracy. This module-powered unit can be used with a wide variety of hi-hat stands and playing techniques.

Hardware

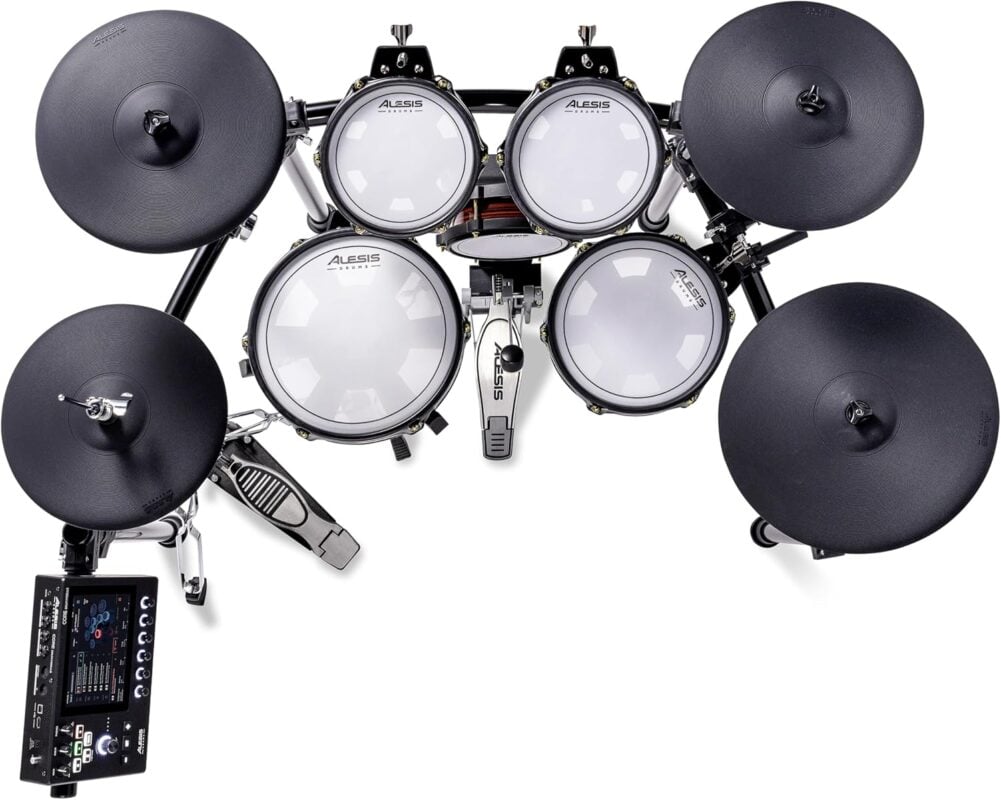

The backbone of Strata Core is a curved steel rack where the toms, cymbals and module are mounted. Sturdy but flexible, it allows for spacious and compact footprints so you can adjust the kit to your ideal playing position for your setup. The ARC hi-hats mount to any hi-hat stand, and the 8″ kick tower can accommodate any single or double pedal configuration. Crash and ride cymbals can be mounted to standard acoustic cymbal stands and are not bound to the rack mounts.

Technical Details

Kick: Strata Kick 8″ (8″ kick tower, mesh head)

Snare: Strata Drum 12″ (12″ mesh head with patented anti-hot spot trigger system)

tom 1: Strata Drum 8″ (8″ mesh head with patented anti-hot spot trigger system)

tom 2: Strata Drum 8″ (8″ mesh head with patented anti-hot spot trigger system)

tom 3: Strata Drum 10″ (10″ mesh head with patented anti-hot spot trigger system)

hi hat: ARC Hihat 12″ Active (12″ 360 degree triple-zone cymbal with stand mounted active magnetic control system)

ride: ARC Cymbal 14″ (14″ 360 degree triple-zone cymbal)

cymbal 1: ARC Cymbal 12″ (12″ 360 degree triple-zone cymbal)

cymbal 2: ARC Cymbal 12″ (12″ 360 degree triple-zone cymbal)

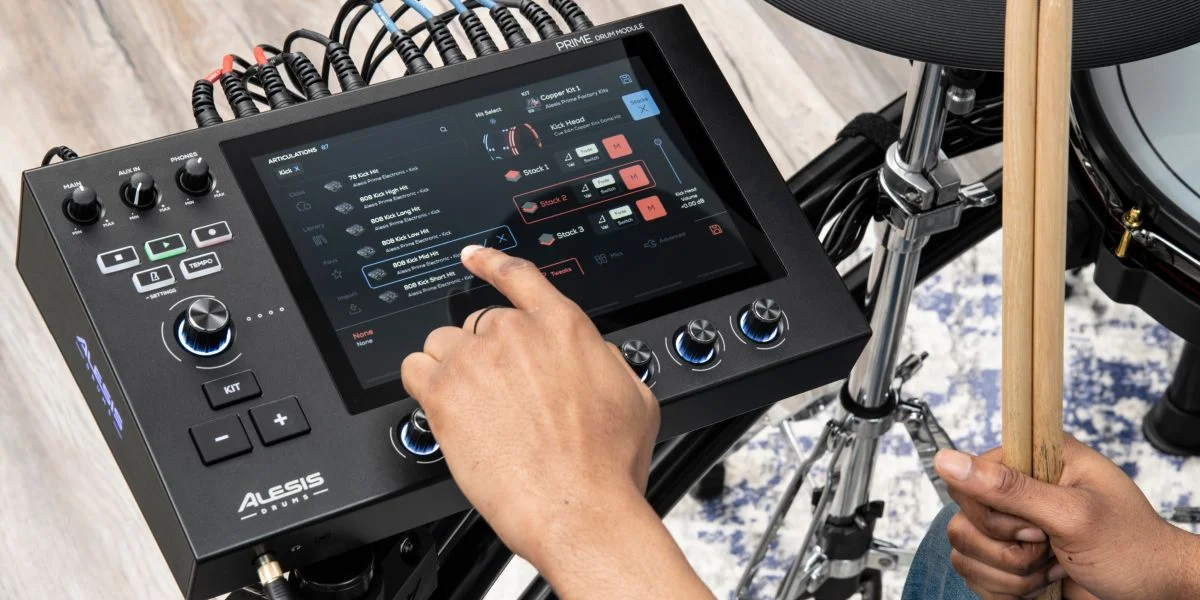

included drum module: Core Drum Module with 7″ touchscreen, multi-core processor, powered by BFD3 sound engine.

Number of Drum Kits: 75

Number of instruments: 25GB+ of all new, multi-layered factory content, 370+ Kit Pieces, 800+ Articulations across 4 diverse sound libraries from Alesis and BFD

module trigger inputs: 9 via cable snake, 2 x 1/4″ TRS (drum and cymbal triggers)

Module Analog Inputs: Stereo 1/8″ TRS

Module Analog Outputs: 2x 1/4″ TRS (main)

Headphones: 1 x 1/4″ & 1x 1/8″ Stereo headphone outputs

Module MIDI I/O: USB MIDI, 5-pin In/Out, Bluetooth MIDI

USB: 1 x Type B (host) & 1x Type A (storage, external MIDI controllers)

User Storage: 1GB+ internal drive

software: Free BFD Player + Core and Dark Mahogany Expansion Packs

included hardware: 4-post Steel Rack, 3x Cymbal Boom Arms, Snare Stand
