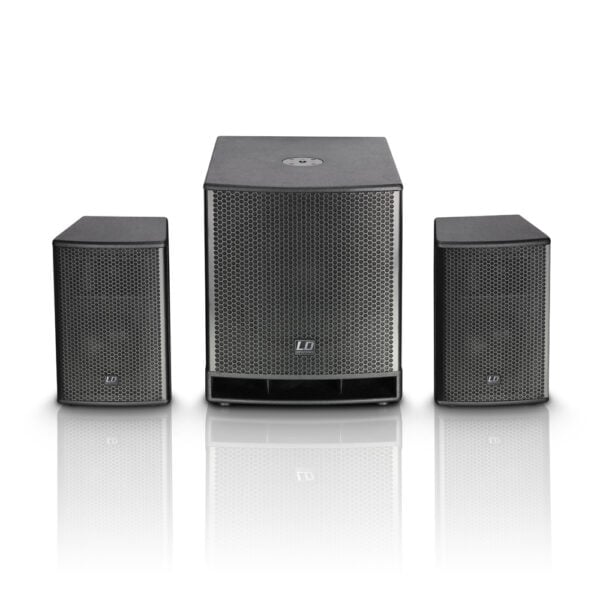

The DAVE 15 G3 is a powerful active compact system. A bass reflex subwoofer with a 15″ driver constitutes the massive, powerful foundation. The satellites with 8″ drivers and HF horns are responsible for a natural sounding, assertive midrange and transparent treble. The subwoofer incorporates a 2.1 power amp module that drives the components of the DAVE 15 G3 with 2800W of Peak power.

The LD LECC DSP digital processor ensures perfectly tuned functioning of the system. It includes specially amplitude and low-latency optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.

The thoroughly professional features of the DAVE 15 G3 active PA system include sturdy multiplex cabinets, all important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped, recessed handles. The LD “Evolutive” handles of the subwoofer are especially worthy of mention: the innovative design with a metal ring handle permits secure, convenient handling from all sides. For accurate vertical orientation, the speaker supports of the satellites are vertically adjustable by � 13,5° max. in seven increments.

Speaker protection covers and a castor board with a lashing strap for simple transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.

Like all systems in the DAVE series, the DAVE 15 G3 is suitable for portable use and for permanent installation.

Specifications
Weight: 60,9 kg
Product type: PA Complete Systems
Colour: Black
Max. SPL (continuous): 121 dB
Max. SPL (peak): 132 dB
Frequency response: 35 – 19000 Hz
Dispersion (H x V): 90 x 40
Subwoofer
Low/mid driver dimensions: 15 ”
Woofer size: 381 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 3 ”
Woofer voice coil (mm): 76.2 mm
Cabinet construction: Bass Reflex
Cabinet material: 18 mm Plywood
Cabinet surface: texture paint
Subwoofer width: 480 mm
Subwoofer height: 570 mm
Subwoofer depth: 635 mm
Subwoofer features: LD Systems “Evolutive” handles, threaded flange M20
Mid/Hi System
Midrange size: 8 “, 203.2 mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1.5 “, 38.1 mm
Horn: CD horn
Tweeter dimensions: 1 ”
Tweeter dimensions (mm): 25.4 mm
Tweeter magnet: Ferrite
Tweeter brand: Custom-made
Tweeter voice coil: 1 ”
Tweeter voice coil (mm): 25.4 mm
Mid/Hi system impedance: 4 Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Speakon compatible
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: 15 mm Plywood
Mid/Hi system cabinet surface: texture paint
Mid/Hi system width: 275 mm
Mid/Hi system height: 430 mm
Mid/Hi system depth: 260 mm
Mid/Hi system features: ergonomically shaped insert handles, SM707 stand mount 36 mm
Amplifier module (integrated in subwoofer)
Amplifier: Class A/B
Amplifier output system (RMS): 700 W
Amplifier output system (peak): 2800 W
Protection circuits: limiter, overload, short circuit
Cooling: volume-controlled fan
Controls: Power, Sub level, Subwoofer Phase Reverse, volume
Indicators: Limit, on/off, Protect (protection circuit engaged), Signal
Operating voltage: transformer, 220 V AC – 240 V AC
Power consumption: 1000 VA
Line inputs: 2
Line input connectors: 6.3 mm jack, RCA, XLR
Line output connectors: XLR
Loudspeaker outputs: 2
Speaker output connections: Speakon compatible
